Single Spindle Horizontal Deep Hole Drilling Machine / Gun Drilling Machine

Ask Lasest Price
Brand Name :	DHD500
Model Number :	500mm depth hole
Price :	Negotiation
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
Supply Ability :	15
Delivery Time :	1 month

Add to Cart

Product Details
Company Profile

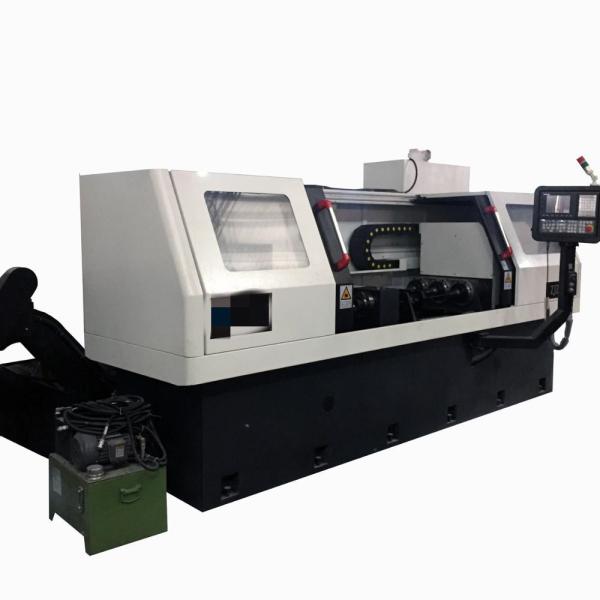

Single Spindle Horizontal Deep Hole Drilling Machine / Gun Drilling Machine

Concentric Hole Gun Drilling Machine

this is single spindle gundrilling machine, mainly for drilling concentric deep hole of small and medium sized axial parts. For fasten and convenient clamping, the clamping method is flexible according to type of workpiece , besides, clamping system is equipped with auxiliary support frame. this kind of gun drilling machine has already served in drilling deep hole of auto parts industry, medical machinery , small and medium sized axial parts of textile industry, etc. Additionally, gun drilling machine has reliable performance in drilling precise shallow hole.

Processing	Machining aperture range	mm	∅4~30
Capacity	Max. drilling depth	mm	1500
	Max. length of workpiece	mm	1600
Spindle	Qty. of spindle	pcs	1(optional 2~3)
	Spindle centerline spacing	mm	200
	Max. speed of spindle	rpm	4500
	Spindle feed speed	mm/min	100
	Spindle fast moving speed	mm/min	1000
Power	Spindle motor	kw	7.5
Power	Total power	kw	18
Cooling system	Pressure range of cooling liquid	MPa	2~10
Cooling system	Flux range of cooling liquid	L/min	0~200
	Size(LengthWidthHeight)	mm	500026002000
Machine tool	Weight	ton	10
